Office Building Speed Gate Turnstile Servo Motor SUS304 RFID

时间：2025-05-12人气：作者：小编

Office Building Speed Gate Turnstile Servo Motor SUS304 RFID

Office Building Speed Gate Turnstile

SUS304 Speed Gate Turnstile

SUS304 swing turnstile gate

Place of Origin:

shenzhen

Brand Name:

cxt

Certification:

Single label product appearance patent

Model Number:

CXT-BT118

Chat Now Product DetailsCommunication:TCP IP,RS485 TCP/IP,RS232/485Communication Interface:RS485,TCP/IP/R485,RS485/Relay SignalType:Single Core & Double Core,Fully Automatic Speed Lane Turnstile,Fully Automatic,speed Gates Manual Gate Arm BarrierApplication:School,Outdoor,Office,Hotel,ParkHousing Material:304 Stainless Steel,SUS304Function:Baffle,barcode Scanner,rfid Card,RFID Reading,fingerprint SupportHighlight:

Office Building Speed Gate Turnstile

SUS304 Speed Gate Turnstile

SUS304 swing turnstile gate

Payment & Shipping TermsMinimum Order Quantity1Price90~3500USDPackaging DetailsCartons and wooden boxesDelivery Time20 working daysPayment TermsPublic AccountSupply Ability500psRelated ProductsVideo

AI Safe Pedestrian Barrier Gate SUS304 With Adjustable Speed

Get Best Price

Intelligent Hotel Stainless Steel Turnstiles Glass Turnstile Gate

Get Best Price

Airport Customs Speed Gate Turnstile ISO9001 With Real Time Data

Get Best Price

Waist Height Metal Swing Barrier Gate 304 Innovative Anti Collision

Get Best PriceContact UsChat NowProduct Description

Cloud Processing Visitor Office Building Clubhouse Servo Motor Speed gate CXT-BT118

Model: CXT-BT118

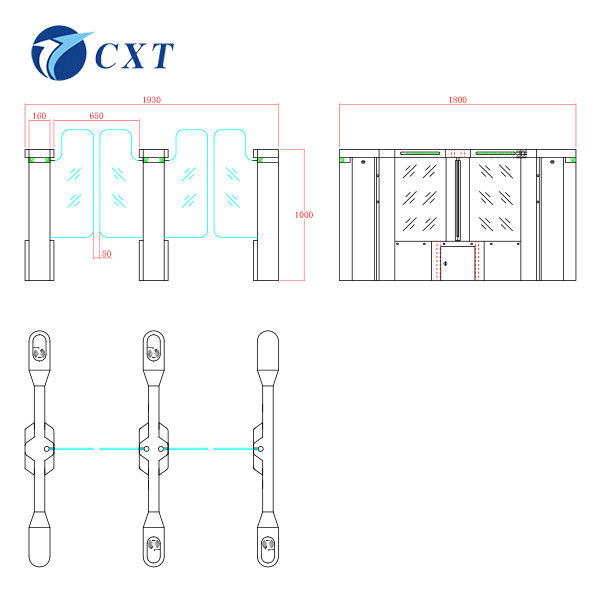

Specifications: 1600x130x1000mm
Pole length: Single pendulum channel width 650mm Process: Laser, bending, cutting, welding, polishing, grinding, etc.
Material: 304 stainless steel

It can be connected with a variety of card reading devices and receive relay switch signals to work.
● It can be connected to an external switch button or remote control to achieve one-way or two-way control of passage.
● It has an automatic reset function. When the swing arm is opened, it will automatically close after a certain delay (the delay is adjustable at 3S, 5S, 10S, and 60S).
● Mechanical anti-pinch: It mainly relies on the reasonable design of the gate's own machinery to achieve mechanical anti-pinch. When a human body or object hinders the operation of the swing arm, the system will automatically detect and stop running. The swing force of the swing arm is small and will not hurt people or objects.
● Strict anti-pinch function with reasonable logical judgment function.
● Humanized self-protection:
A. When a human body or object hinders the operation of the swing arm, the system will continuously detect 1-5 times, each time for 5 seconds. If the obstruction has not been removed, the system will automatically stop in the normally closed state. At this time, some devices are in a dormant state, which effectively avoids burning out the original devices. When the next valid passage instruction is received, the system automatically returns to normal.
B. When the system cannot detect the reset signal normally (i.e. the swing arm hits the chassis), the system automatically detects 1-5 times, each time for 5 seconds. If the reset signal cannot be detected, the swing arm automatically returns to the normal locked state. (This protection function description: Even if the reset optical couple is damaged, the system can still be used, and the circuit or motor will never be burned.)

● The switching speed is adjustable from 0.8 to 2 seconds: divided into 16 gears, and the switching speed can be freely adjusted according to requirements.
● Normally open and normally closed adjustable: the normally open and normally closed modes can be easily switched through external buttons or remote controls.
● Normally open when power is off, the system automatically puts the swing arm in the open state after power is off, and the swing arm opening direction is adjustable.
● High-brightness indicator light: It can still be clearly seen during the day or under sunlight.
● Humanized traffic indication: It is usually not lit. When someone passes legally, the green arrow flashes, and it automatically goes out after passing.
● Sound and light alarm function, including illegal intrusion, tailgating, anti-pinch alarm, etc.;
● The swing arm is adjustable synchronously (for double swing situations).
1. Counting function (positive and negative addition or subtraction);
2. Lengthen or shorten the swing arm and material selection.
3. Voice prompts (welcome, good luck, please swipe the card, etc.).

Smart Speed Gates: Revolutionizing Corporate Entry Solutions

Efficient Entry and Exit Management

As the cornerstone of modern smart entry solutions, our speed gates offer an ultra-fast response time of 0.3 seconds, effectively eliminating morning rush congestion and ensuring a smooth flow of personnel throughout the day. With a remarkable capacity of over 50 passages per minute, these gates significantly enhance operational efficiency, making it easier for employees to navigate the workplace without delay.

Silent Operation and Aesthetic Appeal

Designed with a quiet operation of just 35 decibels, our speed gates preserve the tranquility of open-office environments, creating a pleasant atmosphere for employees to work in. Crafted from brushed metal, these gates not only function flawlessly but also exhibit a sleek and modern aesthetic that complements any corporate setting. Furthermore, their synchronization with smart lighting systems adds an extra layer of sophistication, creating a corporate image wall that reflects the company's innovative spirit.

Seamless Integration with HR Systems

Our speed gates seamlessly integrate with HR attendance systems, providing a streamlined and efficient entry process for employees. This integration not only enhances corporate security by ensuring that only authorized personnel can enter the premises but also facilitates intelligent management by automatically tracking attendance and other relevant data. Overall, our smart speed gates offer a comprehensive solution that combines functionality, aesthetics, and advanced technology to meet the needs of modern businesses.
