| Model | Three-roller turnstile CXT-SW125 |
|---|---|

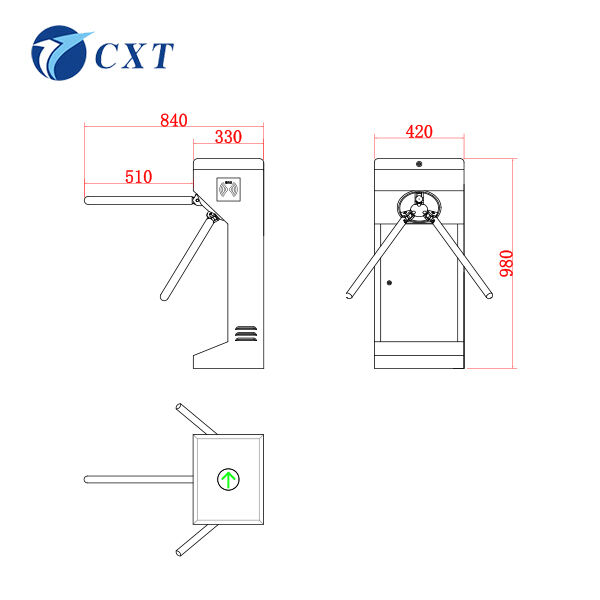

| Specifications | 1600mm * 280mm * 980mm |
| Pole length | 510mm |
| Process | Bending, cutting, welding, polishing, grinding |
| Material | National standard 304 stainless steel (201 stainless steel, iron paint can be customized) |




| Serial number | Name | General tripod turnstile | Intelligent tripod turnstile | Dual motor brushless tripod turnstile |
|---|---|---|---|---|
| 1 | Rotation mode | Hand push | Electric | Electric |
| 2 | Positioning principle | Optocoupler fixed point | 1/360 decoding | Motor self-positioning |
| 3 | Locking mode | Positioning arm | Suction cup instant reverse push | Not locked |
| 4 | Transmission mode | Solenoid valve | Brushed motor | Brushless motor |
| 5 | Control technology | Single chip microcomputer | Single chip microcomputer | ARM |
| 6 | Rod mode | Manual | Automatic | Automatic |
| 7 | Buffer | No | Yes | Yes |
| 8 | Anti-reverse | No | Yes | Yes |
| 9 | Noise | Large | Small | No |
| 10 | Mechanical wear | Large | No | No |
| 11 | Illegal alarm | No | Yes | Yes |
| 12 | Passage prompt | No | Yes | Yes |
| 13 | Service life | 1-3 years | 5-10 years | 6 years and above |
| 14 | Passing speed | 25-30 people/minute | 30-60 people/minute | 30-60 people/minute |
| 15 | Power failure | Yes | Yes | Yes |
| 16 | Memory | No | Yes | Yes |
| 17 | Fire input | Yes | Yes | Yes |
| 18 | Feedback signal output | No | Yes | Yes |
