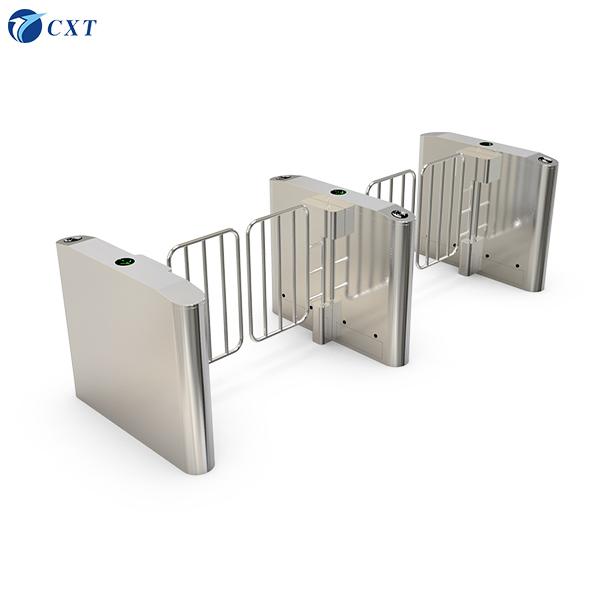

Brushless motor anti-collision intelligent community management Swing Gate CXT-BW131B

CXT-BW131B dual-channel anti-climbing and anti-drilling swing gate function introduction

★Can be connected with a variety of card reading devices, receive relay switch signals to work.

★Sound and light alarm function, including illegal intrusion alarm, anti-pinch alarm.

★Can be connected to an external switch button or remote control to achieve one-way or two-way control of passage.

★With automatic reset function, when the swing arm is opened, it will automatically close after a certain delay (the delay is adjustable at 2S, 5S, 10S, and 60S).

★Mechanical anti-pinch: It mainly relies on the reasonable design of the gate's own machinery to achieve mechanical anti-pinch. When a human body or object hinders the operation of the swing arm, the system will automatically detect and stop running. The swing arm swings with a small force and will not hurt people or objects.

★Humanized self-protection:

A. When a human body or object hinders the operation of the swing arm, the system will continuously detect 1-5 times, each time for 5 seconds. If the obstruction has not been removed, the system will automatically stop in the normally closed state. At this time, some devices are in a dormant state, which effectively avoids burning out the original devices. When the next valid pass command is received, the system automatically returns to normal.

Imported swing gate ,Exported swing gate ,Top ten swing gate brands ,Face recognition swing gate, Card swing gate ,QR code swing gate, Application of swing gate ,Swing gate manufacturer Swing gate system solution ,Repair of swing gate, Maintenance of swing gate ,Installation of swing gate, Swing gate case ,Swing gate picture

B. When the system cannot detect the reset signal normally (i.e. the swing arm hits the chassis), the system automatically detects 1-5 times, each time for 5 seconds. If the reset signal cannot be detected, the swing arm automatically returns to the normal locked state. (Description of this protection function: Even if the reset photocoupler is damaged, the system can still be used, and the circuit or motor will never be burned out.)

★ The switching speed is adjustable from 0.8 to 2 seconds: divided into 16 gears, and the switching speed can be freely adjusted according to requirements.

★ Normally open and normally closed adjustable: the normally open and normally closed modes can be easily switched through external buttons or remote controls.

★ Normally open when power is off, the system automatically puts the swing arm in the open state after power is off, and the swing arm opening direction is adjustable.

★ High-brightness indicator light: It can still be clearly seen during the day or under sunlight.

★ Humanized traffic indication: It is usually not lit, and the green arrow flashes when someone passes legally, and it automatically goes out after passing.

★Swing arm synchronization is adjustable (for double swing situations).

Extended functions:

1) Counting function (forward and reverse subtraction);

2) Lengthen or shorten the swing arm.
