Office 300 People/Min Flap Gate Barrier Automatic Systems Turnstiles YW200

时间：2025-07-08人气：作者：小编

Office Flap Gate Barrier

Office Automatic Systems Turnstiles

300 People/Min Flap Gate Barrier

Place of Origin:

shenzhen

Brand Name:

cxt

Certification:

Single label product appearance patent

Model Number:

CXT-YW200

Chat Now Product DetailsAccess Control:RFID,fingerprint,barcode,esd,tokenHead Thickness:1.5mm (can Be Customized)Application:Fare Collection,ticket Station,OfficeCertification:ISO,CE,RoHSUsage:Office,Hotel,Library,Metro Station,ect.Name:Flap Turnstile Gate,High Speed GateHighlight:

Office Flap Gate Barrier

Office Automatic Systems Turnstiles

300 People/Min Flap Gate Barrier

Payment & Shipping TermsMinimum Order Quantity1Price90~3500USDPackaging DetailsCartons and wooden boxesDelivery Time20 working daysPayment TermsPublic AccountSupply Ability500psRELATED PRODUCTSVideo

Brushless Motor Flap Barrier Gate Bi Directional For Ticket Station YW120

Get Best PriceVideo

Stainless Flap Barrier Gate Infrared Anti Pinch With Remote Control 160B

Get Best PriceVideo

30-40 People/Min Office Security Barrier Gate Retractable Flap Barrier 140X

Get Best PriceVideo

Indoor Electronic Barrier Gates 600mm Passage Width 304 Stainless Steel Y260T

Get Best PriceCONTACT USChat NowProduct Description

Office Clubhouse Brushless Motor 300 people/minute Flap Barrier Gate/Wing Gate CXT-YW200

Wing Gate CXT-YW200

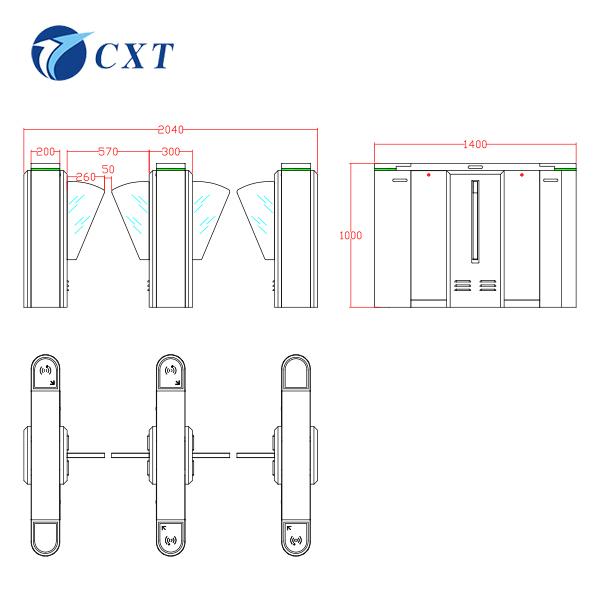

Model	CXT-YW200
Specifications	16003001000mm
Rod length	260mm
Process	produced by bending, cutting, welding, polishing, grinding and other processes
Material	National standard 304 stainless steel (can be customized 201 stainless steel, iron paint)

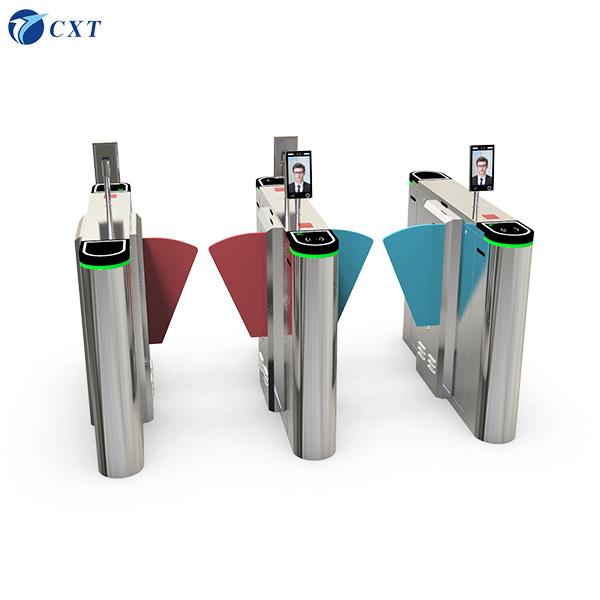

Office 300 People/Min Flap Gate Barrier Automatic Systems Turnstiles YW200 1

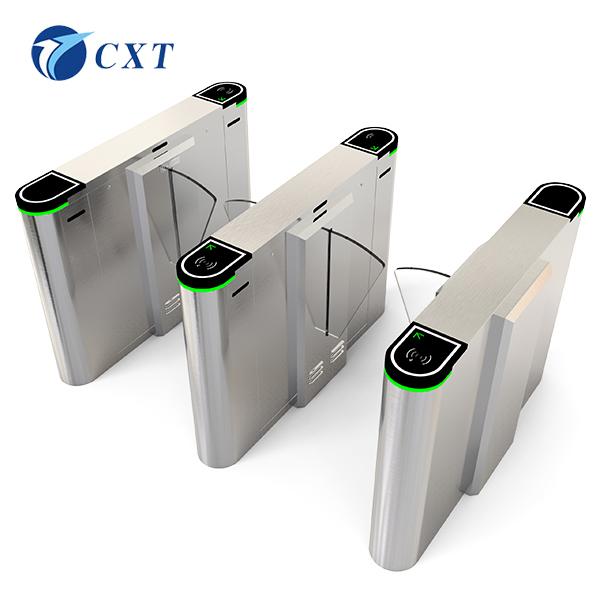

Office 300 People/Min Flap Gate Barrier Automatic Systems Turnstiles YW200 2

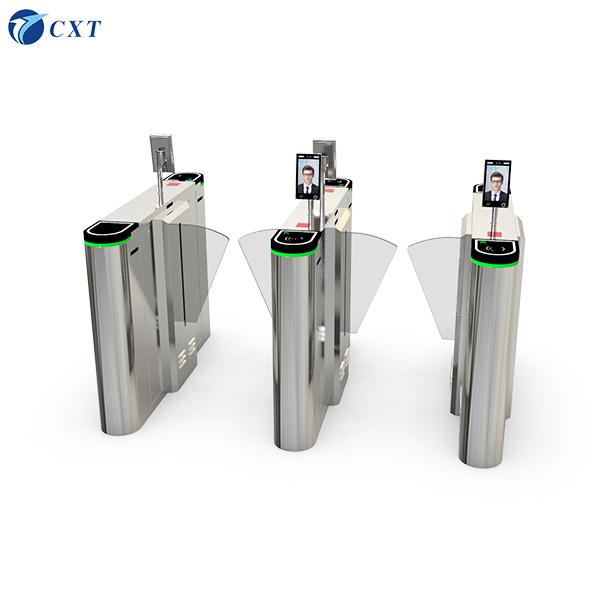

Office 300 People/Min Flap Gate Barrier Automatic Systems Turnstiles YW200 3

Product features of large arc elliptical brushless wing gate:

1) It has fault self-detection and logic judgment functions, which is convenient for users to maintain and debug functions;
2) Flexible dial code setting of various performances of the equipment, up to dozens of types;
3) Mechanical and infrared dual anti-pinch function, when encountering obstacles during the resetting process of the barrier arm, it will automatically stop or rebound and send out an alarm signal;
4) Multiple mode alarm function, including illegal intrusion, anti-intrusion, tailgating, and passage timeout alarms;
5) Anti-collision function, when no gate opening signal is received, the barrier arm will automatically lock;
6) Reverse intrusion closing alarm function, when someone enters from the reverse direction after swiping the card forward, the barrier wing will quickly close and send out an alarm;
7) Flexible passage indication function, high-brightness indicator light plus its humanized prompt function, making the channel more distinctive;
8) Normally open and normally closed modes are adjustable, easily controlled by dialing or external manual buttons;
9) Automatic detection and reset function, after opening the gate, if no object is detected within the specified time (adjustable), the system will automatically cancel the passage authority;
10) Automatic normally open when power is off to meet fire protection requirements;
11) It can be connected with a variety of control devices and receive relay switch signals to work;
12) Various traffic modes, can control personnel entry and exit in one direction or two directions, or be controlled in one direction and freely pass in the opposite direction;
13) Strong ability to adapt to the environment, can work normally in various harsh environments, super strong self-protection ability, can adapt to weak current short circuit, strong light exposure, fog, rain, snow, typhoon weather and environmental changes.
2. Expandable functions:
◆Two-way automatic counting function, can "add" in the forward direction and "subtract" in the reverse direction, automatically count the number of people present (customized).
◆Voice prompt function: "Welcome! Bon voyage! Please swipe your card!" etc. (customized);
◆Telescopic arm material and primary color selection

3. Main structure and configuration of the wing gate (based on single channel):
2 standard stainless steel chassis, 2 plexiglass arms, 2 industrial-grade main control boards, 2 transformers, 2 motors, 2 sets of movement and transmission parts, 3-4 pairs of infrared beams, 4 high-brightness warning lights
4. Standard technical parameters of the wing gate:
◆Chassis size: 1200*320*1000mm
◆Processing technology: produced by bending, cutting, welding, polishing, grinding and other processes
◆Single machine weight: about 90Kg (single movement), about 120KG (double movement)
◆Chassis material: standard 304 stainless steel frame structure
◆Working environment: indoor or outdoor (with rainproof rack)
◆Access voltage: AC220±10% V, 50HZ
◆Drive motor: DC motor (60W/24V)
◆Motor speed: 1600 rpm
◆Input interface: Relay switch signal
◆LED indicator: 2
◆Card reader: 2
◆Normal service life: 5 million times
◆Humidity: 5%--90%
◆Passing speed: 30-40 people/minute
◆Gate opening and closing time: 1-2 seconds
◆Time required to enter the passing state after power-on: 3 seconds
◆Automatic reset time after a fault occurs: 10 seconds
◆Working temperature: -40℃—— 80℃

Top 10 brands of Flap Barrier Gates,Face recognition Flap Barrier Gates,Card swipe Flap Barrier Gates,QR code Flap Barrier Gates,Applications of Flap Barrier Gates,Flap Barrier Gate manufacturers,Flap Barrier Gate system solutions,Flap Barrier Gate maintenance,Flap Barrier Gate maintenance,Flap Barrier Gate installation,Flap Barrier Gate cases,Flap Barrier Gate pictures,Is the Flap Barrier Gate expensive?,How much does a Flap Barrier Gate cost?,Flap Barrier Gate agent,Fingerprint Flap Barrier Gate,Flap Barrier Gate access control system,Office building dedicated Flap Barrier Gate,Flap Barrier Gate parameters,

School dedicated Flap Barrier Gate,Precautions for using Flap Barrier Gates,Flap Barrier Gate brand,Flap Barrier Gate manufacturer,Flap Barrier Gate manufacturer,Flap Barrier Gate ticket inspection system,Flap Barrier Gate channel, Community dedicated Flap Barrier Gate,Flap Barrier Gate working principle,Scenic area dedicated Flap Barrier Gate,

Station dedicated Flap Barrier Gate,Airport dedicated Flap Barrier Gate,Single-movement Flap Barrier Gate ,Dual-movement Flap Barrier Gate,Outdoor Flap Barrier Gate,Indoor Flap Barrier Gate,Anti-collision Flap Barrier Gate,Waterproof Flap Barrier Gate,Pedestrian passage Flap Barrier Gate,Innovation Flap Barrier Gate,Brushless Flap Barrier Gate,Anti-collision Flap Barrier Gate,Fully automatic Flap Barrier Gate

No	Name	Market wing gate	CXT brushless wing gate
1	Transmission motor	brushed	brushless
2	Positioning method	proximity switch or optical coupling positioning	brushless intelligent positioning
3	Control technology	single chip microcomputer	ARM+DFC
4	Operation noise	large	very small (silent)
5	Mechanical wear	large	small
6	Anti-pinch performance	infrared anti-pinch/double anti-pinch	triple anti-pinch
7	Operation speed	uniform speed, slow speed,	variable speed, fast speed
8	Stability	general	very stable
9	Switching time	0.6-1S	0.4-1S
10	Passing speed	25-30 people/minute	≥35 people/minute
11	Service life	1-3 years	5-10 years
12	Transmission life	3 million times	≥8 million times
13	Parameter setting	dial code	numeric keys
14	Pass memory	No	yes, can be set
15	Feedback signal output	no	yes, can be set

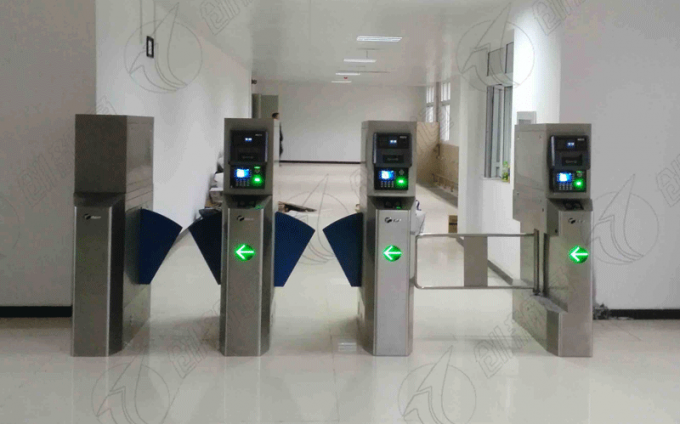

Office 300 People/Min Flap Gate Barrier Automatic Systems Turnstiles YW200 5
