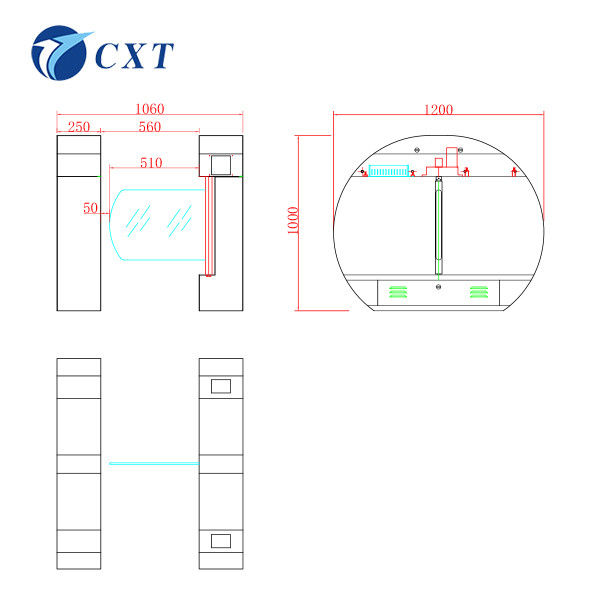

| Model | Circular swing gate CXT-BW130DD |
| Specifications | 1200*250*1000mm |
| Pole length | 545mm |
| Process | Produced by bending, cutting, welding, polishing, grinding and other processes |
| Material | National standard 304 stainless steel (can be customized 201 stainless steel, iron paint) |
The circular swing gate is a unique-looking channel gate designed by Chuangxintong Company for kindergartens. It has a larger internal space for easy integration of the control system and is an intelligent channel gate device with a new swing gate movement as standard. The circular swing gate can strictly control the entry and exit of pedestrians with infrared signals. At the same time, it organically integrates unique mechanical transmission, microprocessor control and various reading and writing technologies to complete the intelligent control and management of channel traffic and solve all control problems of pedestrian entrances and exits. It is widely used in kindergartens, primary schools, factories, communities, entertainment venues, gymnasiums, cinemas and other public places.
| Serial number | name | general swing gate | anti-collision swing gate | brushless swing gate |
| 1 | drive | motor | brushed | brushless |
| 2 | positioning principle | optical coupling fixed point | 1/500 decoding | brushless intelligent positioning |
| 3 | positioning method | gear positioning | clutch positioning | intelligent reverse thrust no lock |
| 4 | buffer | no | primary buffer | continuous buffer |
| 5 | anti-reverse | no | yes | yes |
| 6 | running speed | uniform speed | deceleration | acceleration and deceleration |
| 7 | mechanical wear | large | no | small |
| 8 | illegal mechanical alarm | (no infrared) no | yes | yes |
| 9 | service life | 1-3 years | 3-5 years | 5-10 years |
| 10 | transmission life | 3 million times | 5 million times | 10 million times |
| 11 | parameter setting | dial code | dial code | digital button |
| 12 | memory | no | Yes | Yes |
| 13 | Fire input | Yes | Yes | Yes |
| 14 | Feedback signal output | Yes | Yes | Yes |
| 15 | Power off | normally open | Yes | Yes |
