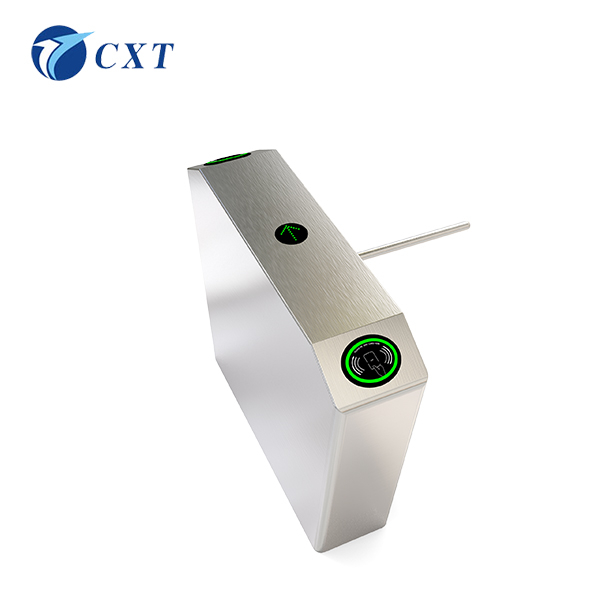

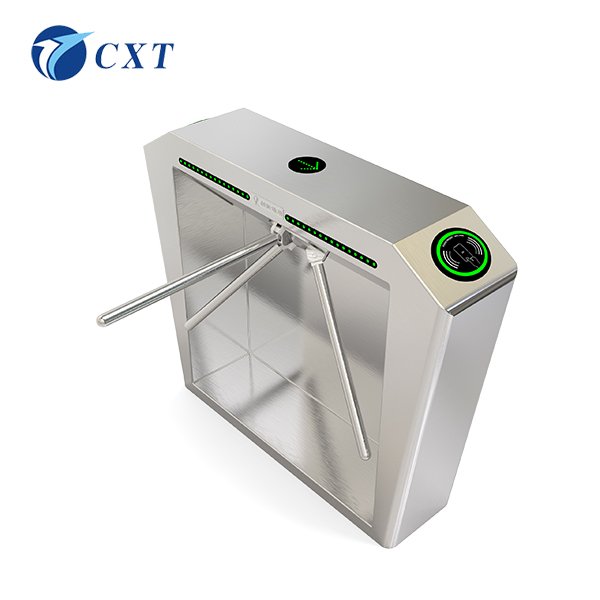

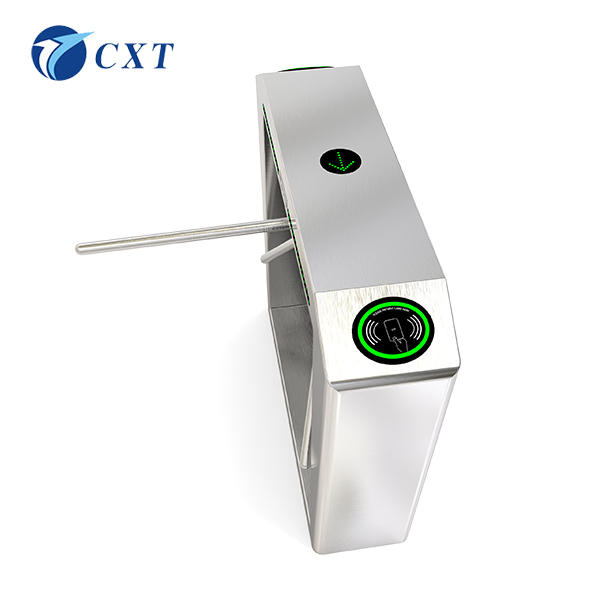

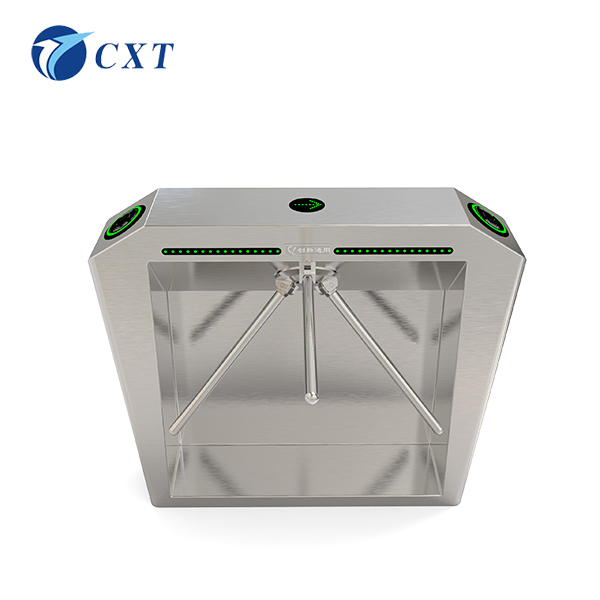

Butterfly Shape Tripod Turnstile CXT-SW126

Butterfly Shape Tripod Turnstile Core Features:

Combined with brushless motor for a longer lifespan.
ARM control board technology with merits for stronger function and better extensibility.
Modular structure design is simpler and easier to maintain.
Better buffer effect, greatly improve anti-collision ability and prevent human injuries;
With promptly contrarotation will deter the intruder
High cost-effective

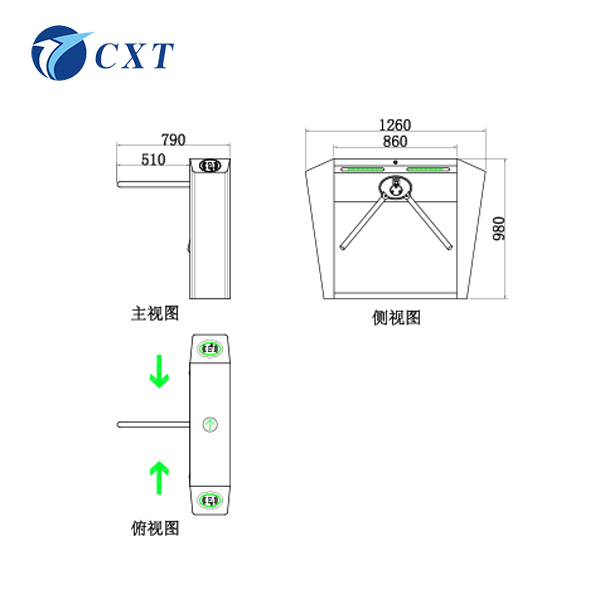

Lane width:510mm
Application environment:Indoor/Outdoor
Appearance grade:High/middle/low(optional)
Anti-trailing: Excellent
Anti-collision: Excellent
Pass group:pedestrian-only
High cost-effective
tripod barriers for access control
used as bus turnstile

Butterfly Shape Tripod Turnstile Function Comparison Table：

Seq.	Item name	Market product	CXT upgraded product
1	Rotation mode	Manual push	Electric power
2	Positioning principle	Optical coupling point	Motor self-position
3	Positioning mode	Positioning arm	Timely re-push, unlock
4	Transmission mode	Magnetic valve	Brush-less motor
5	Control Technology	SCM	ARM
6	Arm lock mode	Manual	Auto
7	Buffering	None	has
8	Anti-reverse	None	has
9	Noise	Big	none
10	Mechanical wear	Big	none
11	unauthorized mechanical alarm (infrared)	None	has
12	Passing indicator Data setting	None	has
13	Life-span	1-3Year	Above 6 year
14	Flow capacity	25-30per./min.	30-45per./min.
15	Normal open when power off	has	has
16	Memory	has	has
17	Fire protection input	has	has
18	Feedback signal output	has	has
