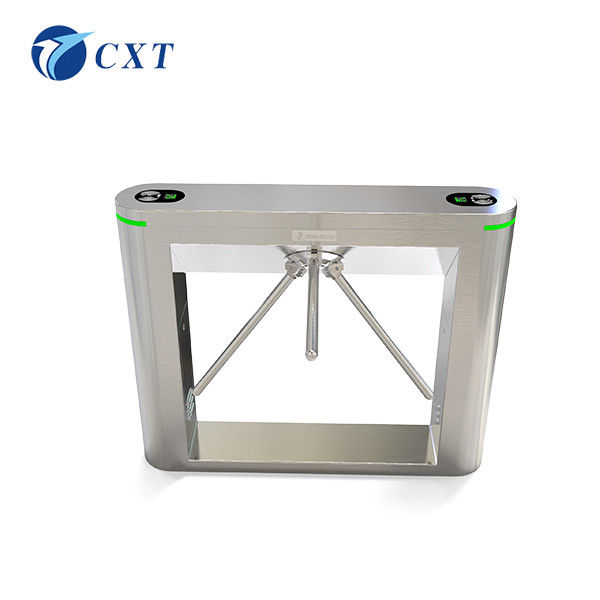

Light strip multi-color 304 brushless motor Tripod turnstile CXT-SW120YS

Chuangxintong CXT-SW120YS fully automatic brushless three-roller turnstile has been newly upgraded with a unique appearance design, a more sophisticated chassis upgrade, a new card swiping prompt light on the card swiping window, and a personalized dynamic passage prompt on the chassis.

This product adopts a new ARM control system and advanced brushless motor industrial control circuit, unique DFC technology and scientific mechanical transmission design, plus the unique transmission technology of the brushless motor and accurate limit technology, making this product achieve a new breakthrough in appearance, performance, life, stability and cost performance!

Unique advantages of the new CXT-SW120YS fully automatic brushless three-roller turnstile:

Modular design of appearance, simpler structure, easier to maintain;

Chassis upgrade, more sophisticated body;

Using brushless motor, longer life;

Using ARM control technology, more powerful functions and better scalability;

Better buffering effect, greatly preventing collision and causing personal injury;

Instant reverse thrust can better deter illegal operators; and other incomparable significant advantages;

Higher cost performance, "high-end performance, low-end price".

Functional description of the new CXT-SW120YS fully automatic brushless three-roller turnstile:

Fault self-check: It has fault self-check and digital screen prompt functions, which is convenient for users to maintain and use.

Automatic drop and raise: Automatic drop when power is off, automatic raise when power is on.

Dynamic prompt: When receiving a legal pass signal, the gate bar automatically rotates about 5 degrees, and gently rotates to the next reset point and stops after a light touch.

Automatic correction: When the gate bar is not in the horizontal position due to external force, the system automatically corrects and returns to the horizontal position.

Card swipe window: Unique card swipe window design, adding card swipe pass prompt.

Light indication: Personalized high-brightness dynamic pass indication, guiding passage.

Fast and wear-free: Electric power, mechanical zero wear.

Smooth and noiseless: Smooth and stable operation, low noise.

Anti-collision buffer function: When illegal passage or gate rush, the gate bar automatically starts braking force to block and issues an alarm to achieve humanized injury prevention. It will automatically reset when the external force disappears.

Anti-tailgating function: Turn 120 degrees for each person passing. If someone is following, the gate will automatically start the reverse thrust to block and alarm.

Adopting the optical working principle, there is no delay requirement for the input control signal, which absolutely avoids the phenomenon of swiping one card to pass several people;

Anti-reversal function: If a reversal occurs during the passage, the gate bar will automatically start the braking force to block and issue an alarm, and automatically resume passage after the reversal external force disappears.

Automatic reset function: It will automatically reset every 120 degrees, or if it does not pass within the specified time (delay adjustable), the system will automatically cancel the right to pass this time.

Alarm prompt function: When passing illegally or rushing the gate, an alarm prompt will be automatically issued.

Memory function: Accurate signal memory, when receiving legal signals for multiple times in a row, it will automatically reset after detecting the last person passing, greatly improving the passage speed. (This function can be selected by dialing)

It has a unified and standard external electrical interface, which can be connected to various reading and writing devices, receive relay switch signals to work, and facilitate system integration;

It has a variety of working modes to choose from, and can be connected to any control device output control signal or button or remote control to achieve single and two-way control passage. It can limit passage in both directions or in one direction. The machine working mode can be set through the control panel button; it can also be set to free passage in one or two directions.

External buttons or remote controls can realize the functions of remote control of the pole drop and pole rise without power failure to meet the special needs of users and fire safety needs (need to be expanded).

Fire input: It can be connected to the fire alarm signal to achieve the power failure of the pole drop and normal opening.

Technical parameters of the new CXT-SW120YS fully automatic brushless three-roller gate:

◇ Shell material: SUS304# stainless steel

◇ Shell processing technology: laser, bending, cutting, welding, wire drawing, polishing, grinding and other processes are used.

◇ Specification size: 1200*220*980mm

◇ Gate rod length/thickness: 510(mm)/￠38 stainless steel tube.

◇ Gate rod steering: one-way, two-way

◇ Standard input interface: relay switch signal

◇ Motor: 24V/30W DC brushless.

◇ Gate opening time: 0.2 seconds.

◇ Passing speed: ≥30-40 people/minute.

◇ Delay reset time: ≥3S adjustable.

◇ Adaptable temperature: -40℃ ～ 80℃. (Consider adding a temperature control system below -10℃)

◇ Adaptable humidity: 5%-95%

◇ Working environment: indoors and outdoors.

This security turnstile gate is formed after bending the stainless steel plate.The shape is featured as pleasing appearance, good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for diverting passengers. At meanwhile, it is intelligent passage management equipment researched, developed and produced by our company.The equipment is integrated with delicate mechanical transmission, microprocessor control, and various read/write techniques. It can be used for intelligent control and management of the passage after equipped with different read/write devices.
