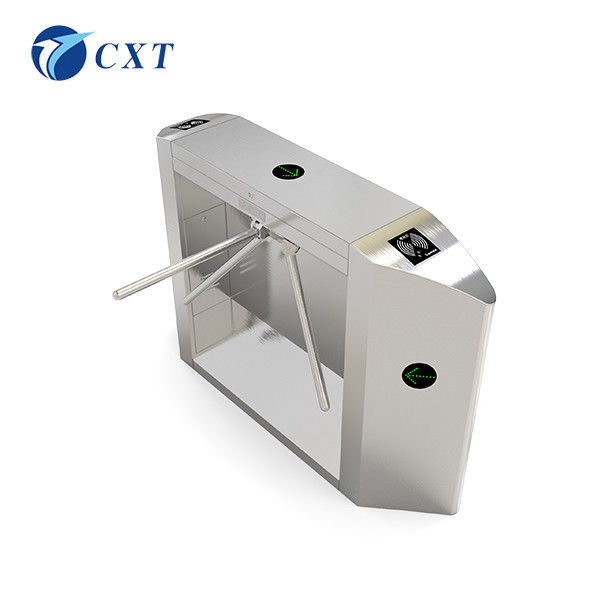

Sharp corner intelligent automatic Tripod turnstile CXT-SW150

CXT-SW150 sharp angle three-roller turnstile function
1) The sharp angle three-roller turnstile has fault self-checking and alarm prompting functions, which is convenient for users to maintain and use;
2) The sharp angle three-roller turnstile is equipped with a standard card reader window, which can be connected to an external switch button or remote control to achieve one-way or two-way control of passage;
3) The sharp angle three-roller turnstile has an automatic reset function. When the gate lever is unlocked, it rotates 120 degrees and automatically resets (locks). Or if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass and automatically close (lock), and the delay is adjustable to 3S, 5S, 10S, and 60S.
4) The sharp-angled three-roller gate has an anti-collision function. When no gate opening signal is received, the gate bar is automatically locked;
5) The sharp-angled three-roller gate has an anti-tailgating function. When one person passes, it turns 120 degrees and automatically locks to prevent tailgating;
6) The sharp-angled three-roller gate has an automatic gate-dropping function when the power is off to meet the requirements of fire management;
7) The sharp-angled three-roller gate can be connected to a variety of card reading devices and receive relay switch signals to work;
8) The sharp-angled three-roller gate adopts an optical working principle and has no delay requirements for the input control signal, which absolutely avoids the phenomenon of swiping a card to pass through several people;
9) The external button of the sharp-angled three-roller gate can realize the left and right normally open functions;
10) The external button of the sharp-angled three-roller gate can realize the gate-dropping function without power failure;
11) The sharp-angled three-roller gate can be directly remotely controlled and managed through the management computer (need to be customized);
12) The control panel of the sharp-angled three-roller gate can be connected to the counting function to record the number of people present and realize the superposition or forward addition and reverse subtraction functions (need to be customized).

CXT-SW150 sharp angle three-roller gate parameters

1) Shell material: National standard 304 stainless steel frame structure (customizable 201 stainless steel or iron paint)

2) Processing technology: produced by bending, cutting, welding, polishing, grinding and other processes

3) Standard dimensions: width 280×length 1200×height 980 (mm)

4) Weight: about 70Kg

5) Gate rod length: 510 (mm)

6) Maximum bearing capacity of gate rod: 80Kg

7) Gate rod working driving force: 3Kg

8) Gate rod steering: one-way, two-way

9) Light prompt: high brightness traffic status indication (normally not lit, arrow flashes when passing)

10) Working movement: 12V/20W solenoid valve

11) Working environment: indoor, outdoor (canopy recommended)

12) Adaptable temperature: -40℃ ~ 80℃

13) Emergency measures: automatic drop of the gate when power is off
14) Gate opening time: 0.2 seconds
15) Passing speed: about 30 people/minute
16) Standard input interface: relay switch signal
