Place of Origin:
shenzhen
Brand Name:
cxt
Certification:
Single label product appearance patent
Model Number:
CXT-SW128Z
Chat NowProduct DetailsPassing Speed:40 Persons/Min.,30people/min,35 Person/minPower Supply:AC220V,AC220V/110V Optional,110~240 V(AC),50Hz,AC220±10%Transit Speed:25~32 Persons / Min,35 Persons/min,20-30 Persons Per Minute,20-30people/min(normal Close)Working Environment:Indoor/Outdoor (with A Tent Over),-10-70 Degree,indoor / Outdoor,Indoor & OutdaoorInterface:RS485,TCP/IP,Dry Contact,Switch SignalKeyword:Turnstile Price,Tripod Turnstile,turnstile DoorApplication:Quality Inspection,Indoor/outdoor With Tent,Company,hotel,airportHighlight:
,
,
Payment & Shipping TermsMinimum Order Quantity1Price90~3500USDPackaging DetailsCartons and wooden boxesDelivery Time20 working daysPayment TermsPublic AccountSupply Ability500psRELATED PRODUCTSVideo
Get Best PriceVideo
Get Best PriceVideo
Get Best PriceVideo
Get Best PriceCONTACT USChat NowProduct Description

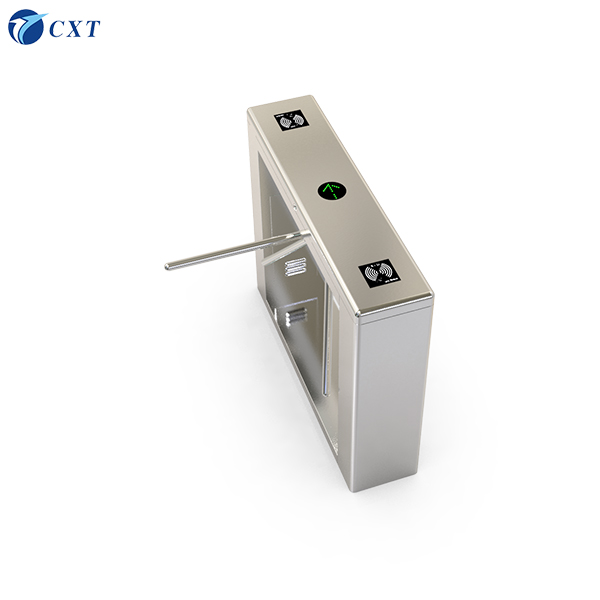

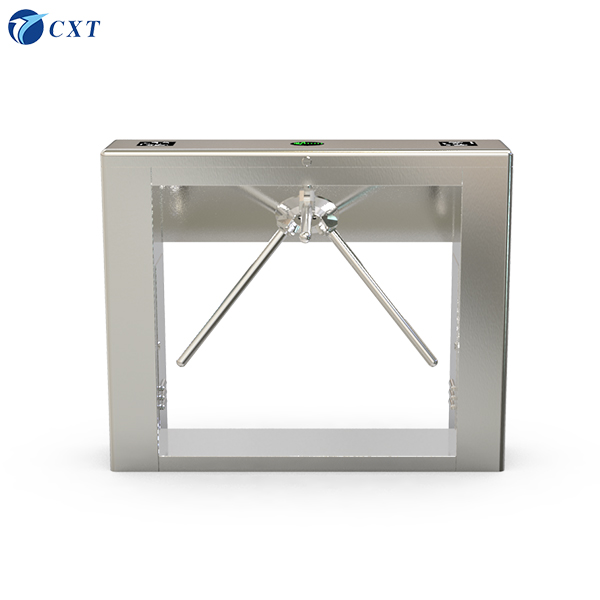

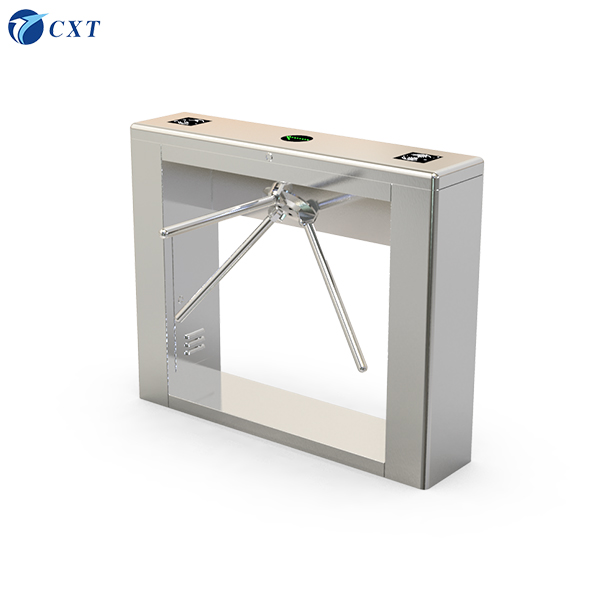

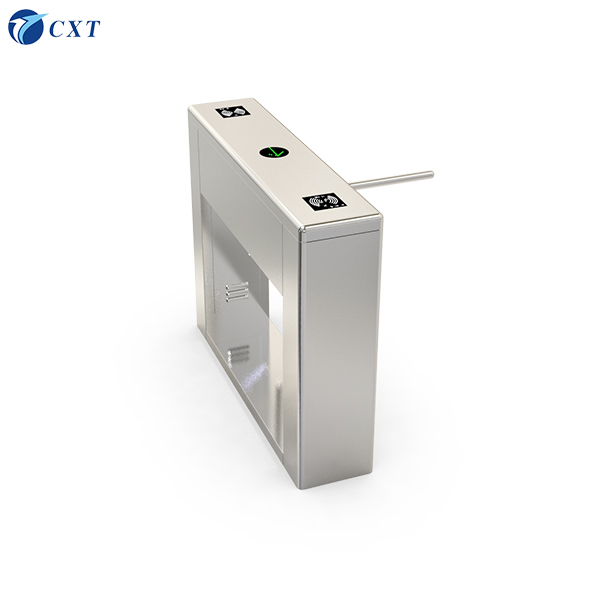

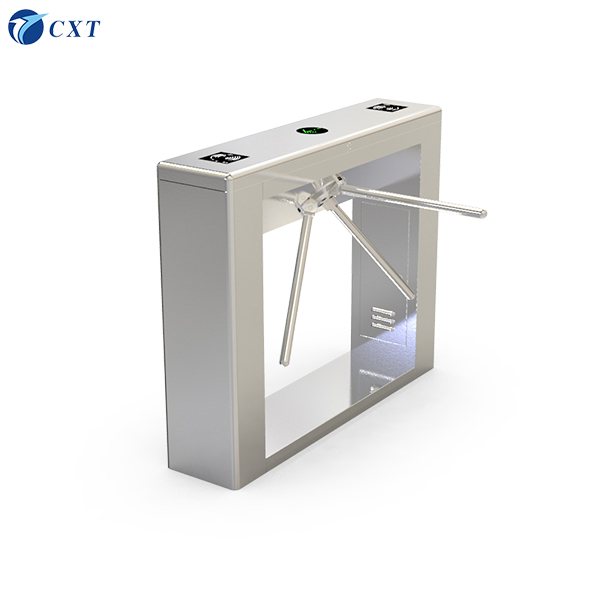

| Model | CXT-SW128Z |
| Specifications | 1200*280*980mm |
| Pole length | 510mm |
| Process | Produced by bending, cutting, welding, polishing, grinding and other processes |
| Material | National standard 304 stainless steel (201 stainless steel, iron paint can be customized) |
1) It has fault self-check and alarm prompt functions, which is convenient for user maintenance and use.
2) It can be connected to any control device output control signal or button or remote control to realize single and two-way control passage.
3) It can arbitrarily set single and two-way free passage.
4) Automatic reset function: It will automatically reset every time it rotates 120 degrees, or if it fails to pass within the specified time (delay is adjustable in multiple gears), the system will automatically cancel the right to pass this time.
5) Light indication: High-brightness traffic light status indication, guiding passage.
6) Anti-tailing function: It rotates 120 degrees for each person passing. If someone follows the gate, it will automatically lock and alarm.
7) Fire input: It can be connected to the fire alarm signal to realize the uninterrupted power-off and normal opening of the gate.
8) Memory function: Accurate signal memory, when receiving legal signals for multiple consecutive times, it will automatically reset after detecting the last person passing, which greatly improves the passage speed. (This function can be selected by dialing)
9) Alarm prompt function: When illegal passage or gate rushing occurs, an alarm prompt will be automatically issued.
10) Anti-reversal function: If a reversal occurs during the passage, the gate bar will automatically lock and sound an alarm, and the passage will automatically resume after the reversal external force disappears.
11) Anti-buffer function: When illegal passage or gate rushing occurs, the gate bar will automatically rotate to a corresponding angle and then lock, realizing humanized injury prevention. When the external force disappears, it will automatically reset.
12) Unattended: The gate bar will automatically drop when the power is off, and automatically go up when the power is on.
13) Dynamic prompt: When receiving a legal passage signal, the gate bar will automatically rotate about 5 degrees, and it will gently rotate to the next reset point and stop after a light touch.
Expandable functions:
1. Remote control and management through the management computer (command docking is required).
2. Counting function to realize the number of people present.
3. Personalized voice prompt function makes the channel closer to life.
Chuangxintong adheres to the business philosophy of "integrity, innovation, and brand", relying on more than ten years of exploration and accumulation of intelligent access gate systems, breaking the traditional pattern with new design concepts, and successively launching new high-tech access products such as the channel boutique Pentium series (brushless swing gate, brushless three-roller gate, brushless wing gate, and high-end sliding gate). Chuangxintong cases are all over the country: banks, foreign companies, large state-owned enterprises, administrative units, petrochemical oil fields, passenger stations, mobile communications, prisons, smart communities, shopping malls and supermarkets, buildings/office buildings, leisure/sports/recuperation/tourist attractions.
| No | Name | Common series on the market | Pentium series |
| 1 | Rotation mode | push | electric |
| 2 | Positioning principle | optical coupling fixed point | 1/500 decoding, |
| 3 | Positioning mode positioning arm | horizontal position | not locked |
| 4 | Transmission mode | solenoid valve | motor |
| 5 | Lifting rod mode | manual | automatic |
| 6 | Buffer | no | yes |
| 7 | Anti-reverse | no | yes |
| 8 | Noise | high | no |
| 9 | Mechanical wear | high | no |
| 10 | Illegal alarm | no | yes |
| 11 | Passage prompt | no | yes |
| 12 | Service life | 1-3 years | 5-10 years |
| 13 | Door rod thickness | ￠32 | ￠38 |
| 14 | Power off drop | yes | yes |
| 15 | Memory | yes | yes |
| 16 | Fire input | yes | yes |
| 17 | Feedback signal output | yes | yes |
Answer:It can be used outside. We all have waterproof function.
Answer: (1) we guarantee all goods quality assurance for two years.
(2) within the two years warranty time,if the machine have problem,we can offer you the accessories(but you pay the freight cost)
Answer:regular products:(3-5 days),irregular products:communication when you place the order.
Answer:30% by T/T in advance.70% by T/T before delivery.
